JS Link is building a stable and sustainable rare earth permanent magnet manufacturing business,
supported by the expertise of the world’s leading permanent magnet technicians.
Neodymium permanent magnets, critical for HEV/EV drive traction motors, lose their magnetic strength at high temperatures. To prevent this, heavy rare earth elements like dysprosium (Dy) and terbium (Tb) are typically added to enhance heat resistance. However, these heavy rare earths are rare and expensive, making cost efficiency a challenge for manufacturers.
At JS Link, we have secured advanced technology to reduce the use of heavy rare earth elements, maintaining high quality while reducing costs. Our products are on par with the top five manufacturers in China and Japan, offering a competitive edge in the global market.
Alloy Composition Design. Fine Strip Technology
Sub-micron Pulverization Technology
Computer Simulation Analysis-Based Magnetic Field Molding Technology
Grain Boundary Diffusion Process
✓ Grain Refinement, Equalization, Core Shell Formation ✓ Tb Free, saving more than 50wt% of Dy ✓ Br ↑, iHc ↑, Performance Score = 77 (MGOe +kOe)
Mold Machine Design / Interpretation → Magnetic Field Mold Design → Anisotropic Rate Control → Permanent Magnet Performance Prediction / Diagnosis
JS Link aims to produce permanent magnets, specifically targeting the N-45UH grade used in hybrid and electric vehicle drive motors.
We employ Tb-Free technology and Dy reduction techniques in the manufacturing process of these N-45UH grades.
Br Reference (kG) ▼ | Normal ▼ | M ▼ | H ▼ | SH ▼ | UH ▼ EV Traction Motor | EH ▼ | AH ▼ |
14.5 ~ 15.2 | N-54 | N-54M | |||||
14.2 ~ 14.9 | N-52 | N-52M | N-52H | N-52SH | N-52UH | ||
13.9 ~ 14.6 | N-50 | N-50M | N-50H | N-50SH | N-50UH | ||
13.6 ~ 14.3 | N-48 | N-48M | N-48H | N-48SH | N-48UH | N-48EH | |
13.2 ~ 13.8 | N-45 | N-45M | N-45H | N-45SH | N-45UH | N-45EH | N-45AH |
12.8 ~ 13.4 | N-42 | N-42M | N-42H | N-42SH | N-42UH | N-42EH | N-42AH |
12.5 ~ 13.1 | N-40 | N-40M | N-40H | N-40SH | N-40UH | N-40EH | N-40AH |
12.1 ~ 12.7 | N-38 | N-38M | N-38H | N-38SH | N-38UH | N-38EH | N-38AH |
11.6 ~ 12.2 | N-35 | N-35M | N-35H | N-35SH | N-35UH | N-35EH | N-35AH |
11.3 ~ 11.8 | N-33 | N-33M | N-33H | N-33SH | N-33UH | N-33EH | N-33AH |
11.0 ~ 11.4 | N-30 | N-30M | N-30H | N-30SH | N-30UH | N-30EH | N-30AH |
iHc Reference kOe KA/m | ≥12 ≥955 | ≥14 ≥1114 | ≥17 ≥1353 | ≥20 ≥1592 | ≥25 ≥1990 | ≥30 ≥2388 | ≥33 ≥2625 |
■ Dy, Tb Free ■ Dy GBDP ■ Tb GBDP ■ Ce Sintered
✓ Innovative Technology
✓ Grain Refinement, Equalization, Core Shell Formation
✓ Tb Free, saving more than 50wt% of Dy
✓ Br ↑, iHc ↑, Performance Score = 77 (MGOe +kOe)
✓ Design & Analysis
Mold Machine Design / Interpretation → Magnetic Field Mold Design → Anisotropic Rate Control
→ Permanent Magnet Performance Prediction / Diagnosis
Target Products
JS Link aims to produce permanent magnets, specifically targeting the N-45UH grade used in hybrid and electric vehicle drive motors. We employ Tb-Free technology and Dy reduction techniques in the manufacturing process of these N-45UH grades.

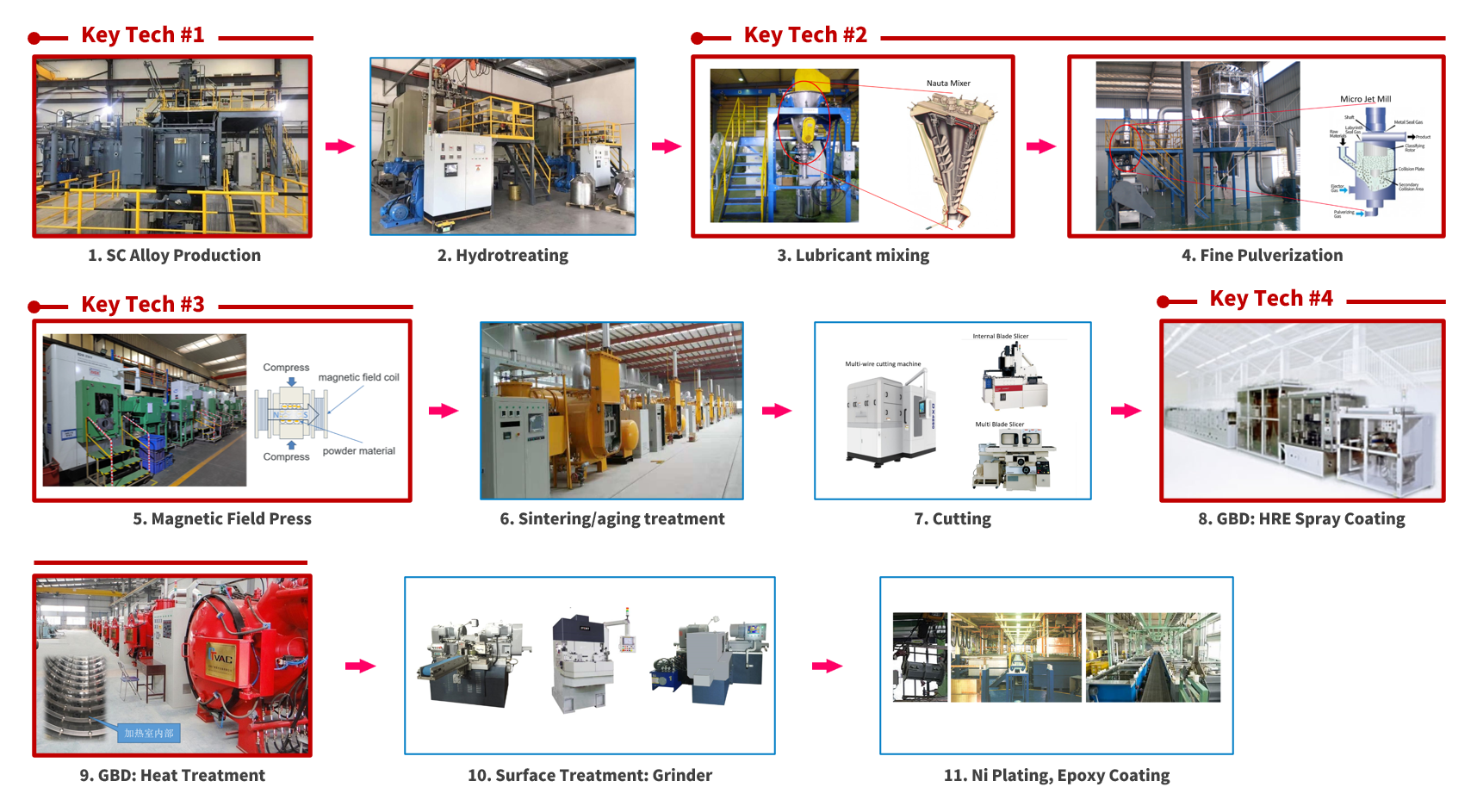

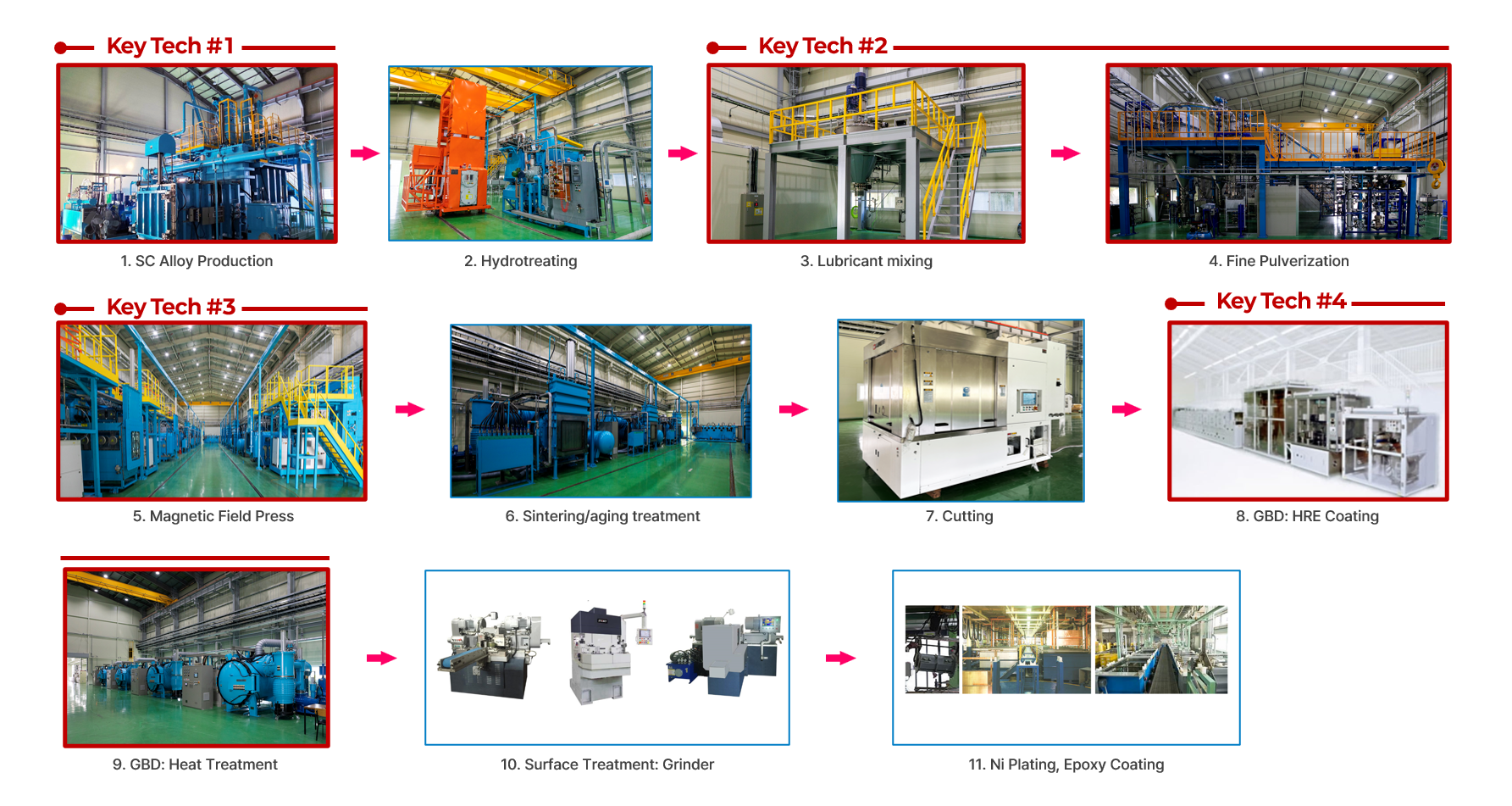

High-performance permanent magnets are created through the following process.

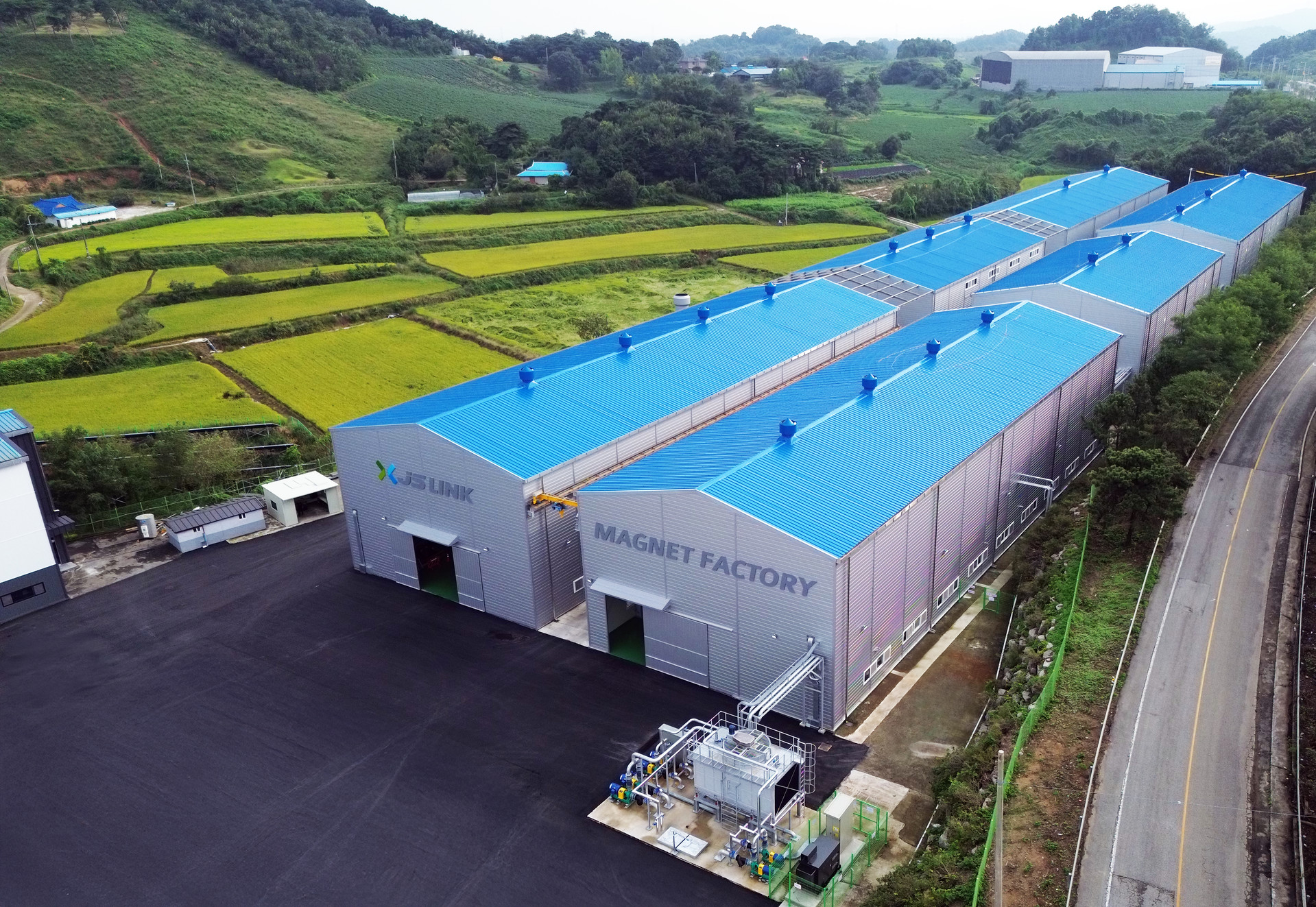

*Currently undergoing commissioning
| Land | 25,195m² |
| Building | 8,259.97m² |
| Gross Area | 10,593.67m² |
